Reinforcing Bar

Name: Reinforcing Steel Bars
Brand: East Steel

Reliable reinforcing steel in sizes from 10 mm – 32 mm for construction and infrastructure.

Certified reinforcing steel

East Steel reinforcing steel is supported by DCL, MoIAT / ECAS and CARES product approvals plus a CARES Environmental Product Declaration. Certificate scope varies by approval.

DCL Product Conformity MoIAT ECAS - Rebar CARES Product Conformity CARES Environmental Product Declaration

Reinforcing Steel

Built for strength, consistency and project requirements

East Steel reinforcing bars are manufactured from billets produced within our own manufacturing operations, supporting quality control and product traceability.

Rebar production began in 2014 and provides reinforcing steel in sizes from 10 mm – 32 mm, with customized specifications for customers across the UAE and MENA region.

10 mm – 32 mmSize range6–18 mLengths100,000MTPA capacity

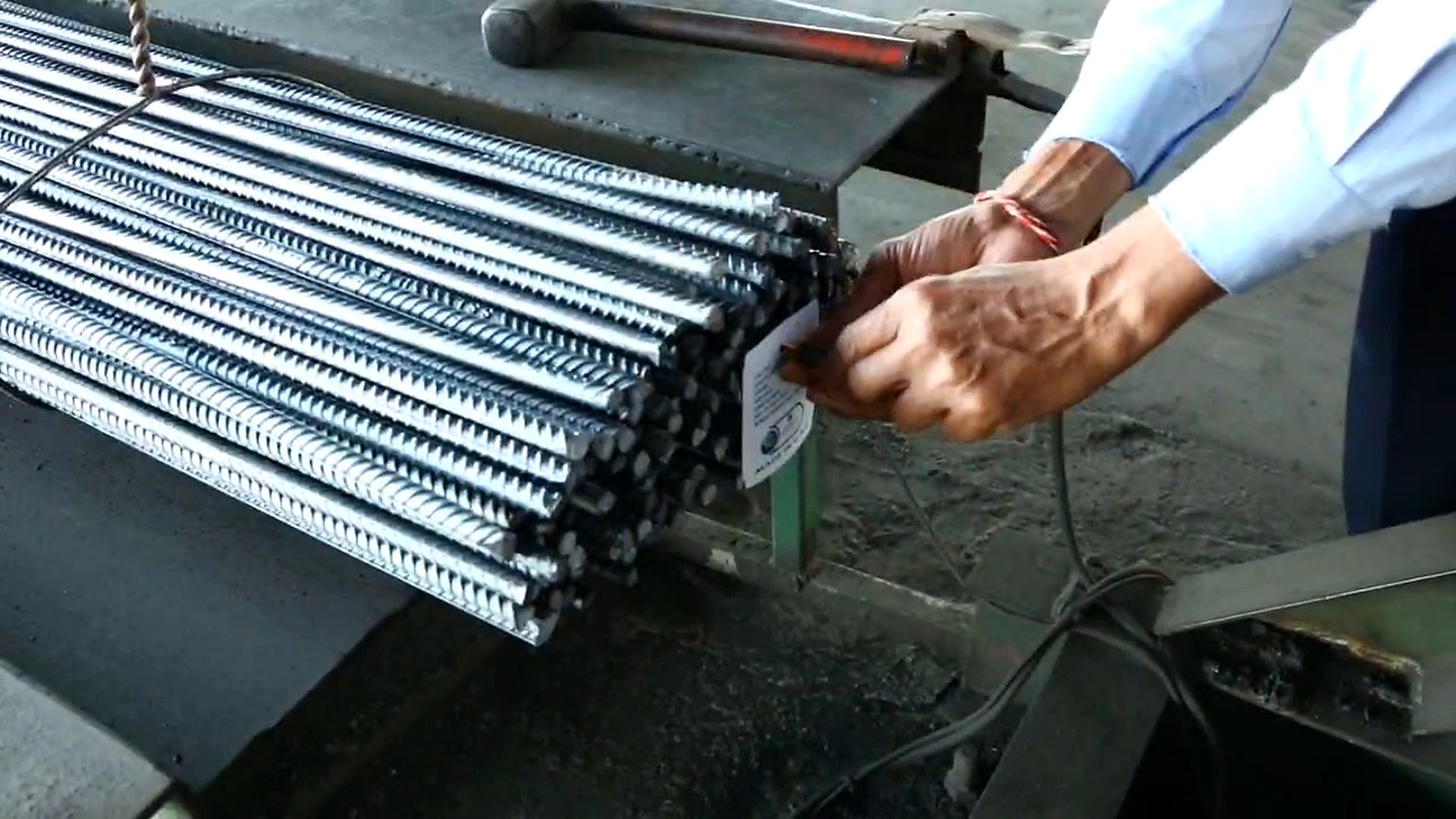

Dimensional inspection of finished reinforcing bar

Production Process

Controlled production from billet loading to packing

Loading

Billets are loaded into the reheating process.

Reheating

Billets are heated to the required rolling temperature.

Rolling

Billets pass through rolling stands to form reinforcing bar.

Quenching

Controlled quenching develops the required mechanical properties.

Cooling

Bars cool uniformly on the cooling bed.

Finishing

Bars are cut to customer-required lengths.

Packing

Finished bars are bundled, tagged and prepared for delivery.

Product Specification

Reinforcing bar specifications and grades

Specifications for East Steel reinforcing bars in the 10 mm – 32 mm size range, including dimensions, grades, chemical and mechanical properties, testing requirements and bundle information.

Product Range

General product specification

Item	Specification
Size Range	10 mm – 32 mm
Lengths	6, 9, 12 or 18 m (as required)
Packaging	Bundles
Bundle Weight	1 or 2 metric tonnes
Bundle Diameter	150-300 mm, depending on bar diameter
Straps per Bundle	Minimum 3

Steel Chemistry

Chemical composition % (maximum)

Standard / Grade	C	Mn	S	P	Si	Cu	N	Ceq
BS 4449:2005+A3:2016 B500B	0.22	-	0.05	0.05	-	0.80	0.012	0.50
KWS GSO ISO 6935-2:2019 B500BWR	0.22	1.60	0.05	0.05	0.60	-	0.012	0.50

Performance

Mechanical properties

Standard / Grade	Yield Strength N/mm² (min)	Tensile Strength N/mm² (min)	Elongation % (min)	Total Elongation at Max Force Agt % (min)	Gauge Length
BS 4449:2005+A3:2016 B500B	500	1.08 YS	-	5	-
KWS GSO ISO 6935-2:2019 B500BWR	500	1.08 YS	14	5	5d

Verification

Bending and re-bending tests

Bending Test

Standard / Grade	Angle	Mandrel Diameter
BS 4449:2005+A3:2016 B500B	-	-
KWS GSO ISO 6935-2:2019 B500BWR	180°	≤16 mm: 3d >16-32 mm: 6d

Re-Bending Test

Standard / Grade	Angle	Mandrel Diameter
BS 4449:2005+A3:2016 B500B	90°-20°	≤16 mm: 4d >16 mm: 7d
KWS GSO ISO 6935-2:2019 B500BWR	90°-20°	≤16 mm: 5d >16-25 mm: 8d >25 mm: 10d

Bundle Planning

Standard bar count - 12 m length

Nominal Diameter (mm)	Unit Mass (kg/m)	Nominal Mass (kg/pc)	Pieces / Bundle
10	0.617	7.40	270
12	0.888	10.66	188
14	1.210	14.52	138
16	1.580	18.96	106
18	2.000	24.00	84
20	2.470	29.64	68
22	2.980	35.76	56
25	3.850	46.20	44
28	4.830	57.96	34
32	6.310	75.72	26

Dimensional Control

Permissible deviation from mass and length

Standard / Grade	Diameter (mm)	Mass Deviation (%)	Commercial Length (m)	Length Deviation (mm)
BS 4449:2005+A3:2016 B500B	10 mm – 32 mm	±4.50	9, 12, 18	+100 / -0
KWS GSO ISO 6935-2:2019 B500BWR	10 & 12 mm	±6.00	9, 12, 18	+100 / -0
KWS GSO ISO 6935-2:2019 B500BWR	14 mm–22 mm	±5.00	9, 12, 18	+100 / -0
KWS GSO ISO 6935-2:2019 B500BWR	25 mm–32 mm	±4.00	9, 12, 18	+100 / -0

From Rolling to Inspection

Reinforcing bar supported by controlled production

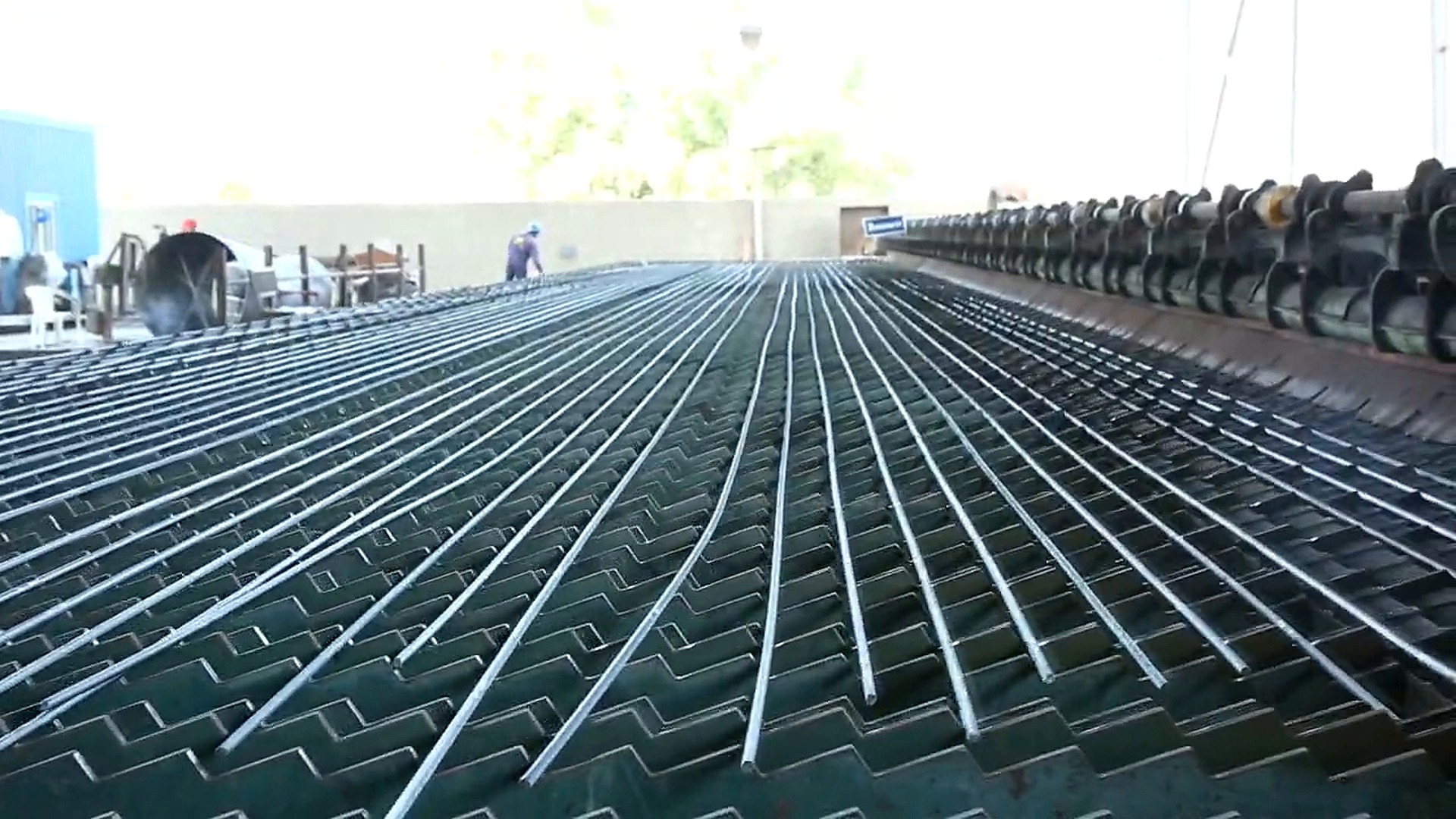

Reinforcing bars aligned on the production line — **Controlled Bar Alignment**Reinforcing bars move through the cooling and alignment process.

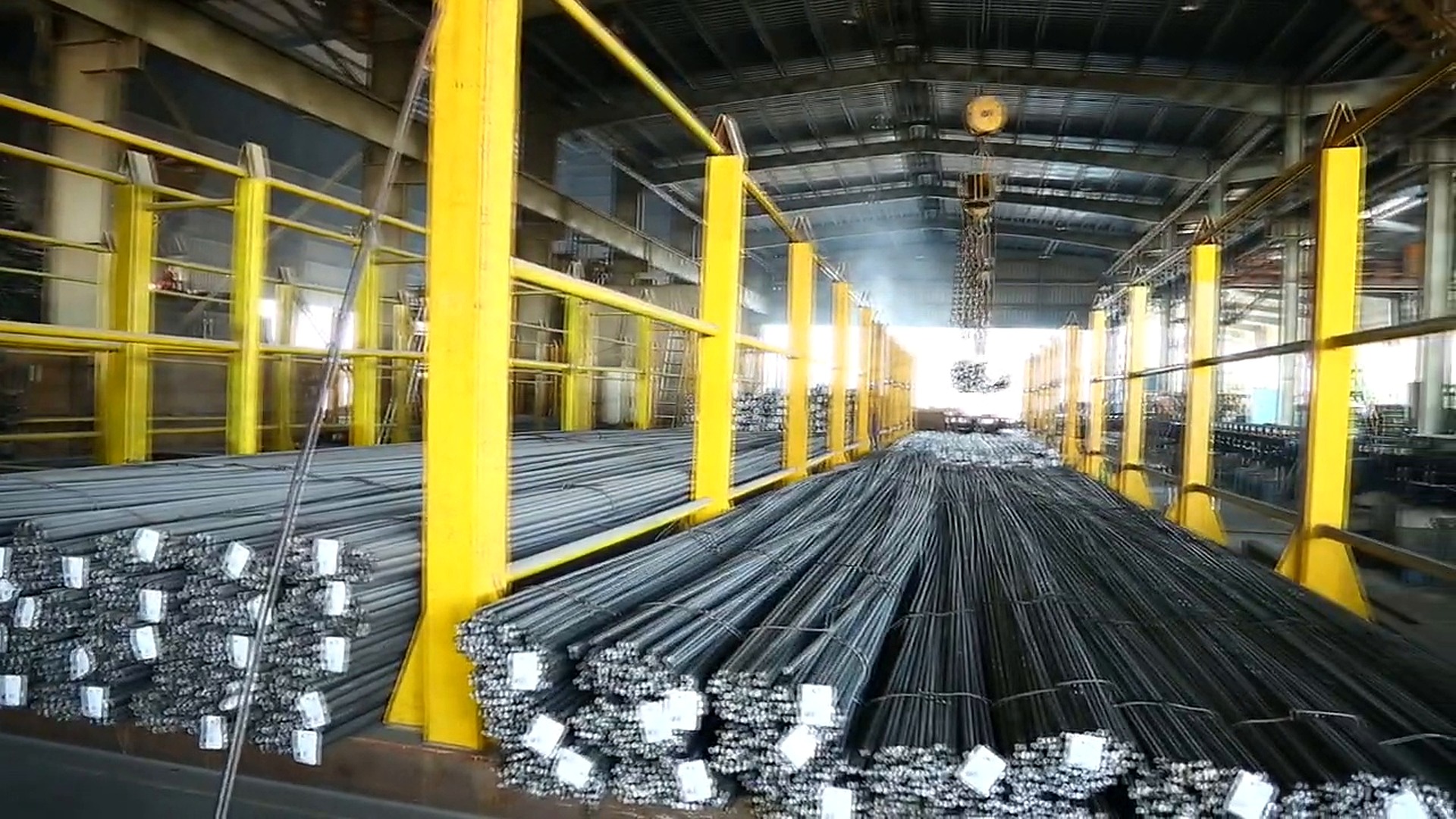

Finished reinforcing bar bundles — **Finished Product**Tagged bundles support product identification, traceability and dispatch.

10 mm – 32 mm

Broad product range

Reinforcing bars from 10 mm – 32 mm, available in multiple lengths and customer-specific supply formats.
